AC Electric Vehicle Charging Station

  • EVsmart series AC charging terminals (floor type)
    EVsmart series AC charging terminals (floor type)

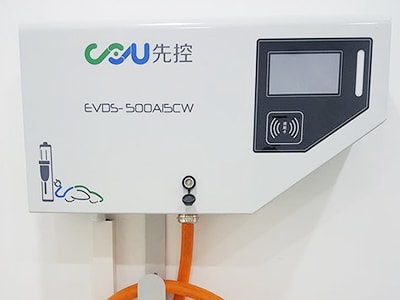

  • EV Mini AC Charger (wall-mount type)
    EV Mini AC Charger (wall-mount type)

Our AC electric vehicle charging station is able to charge all vehicle brands that are designed with a Mode 3 charging method: specifically a socket, plug, and dedicated circuit. This charging station series is applicable to both indoor and outdoor installation due to its compact structure and attractive appearance.

The AC electric vehicle charging station provides 5 different charging powers with a maximum of 43kW, and you can choose either wall-mount or floor types according to your specific requirements.

Applications

Private houses, companies, hotels, parking lots and Plus

Advantages
  • Mode-3 charging method (specific socket and plug and a dedicated circuit), and use Type 2 plug (single and three-phase vehicle coupler)
  • The charging piles can connect with single or three phase power supply, capacity is 16A, 32A, or 63A
  • Immediate charge once plugged in
  • Compact structure and small dimension
  • IP55 protection level
  • You can selectively assemble an electric meter and RFID (radio frequency identification) authorization device
  • Low operating noise
  • Customization according to specific requirements
Paramètres techniques
Series EVmini EVsmart
Model EVMS-3.7 EVMS-7.4 EVMS-11 EVMS-22 EVMS-43
AC input
Power connection 1P + N + PE 3P + N + PE
Input voltage 230 Vac ± 20% 400 Vac ± 20%
Input frequency 50 Hz or 60 Hz
Input current 16A 32A 16A 32A 63A
Power factor > 0.99
Overall efficiency 95%
Sortie AC
Output voltage 230 Vac ± 20% 400 Vac ± 20%
Output current 16A 32A 16A 32A 63A
Rated power 3.7KW 7.4KW 11KW 22KW 43KW
Leakage protection Type A Type B
General Specifications
Type 2 Sortie AC (Mode-3)
AC plug IEC62196 Type-2 plug
Communication methods Ethernet Ethernet, CAN, RS-485, 3G/4G, Wi-Fi
Communication protocols Pilot signal according to IEC61851
Environment Indoor/outdoor
Operating temperature -35ºC-60ºC ( -20ºC to -30ºC, heating required)
Storage temperature -40 ºC to +70 ºC
Operating humidity ≤95% non-condensing
Altitude height < 1000 m
Protection level IP55 , IK10
Acoustic noise < 55 dB
Dimension (W*D*H) mm 350*150*180 270*250*1700
Compliance and safety EN 61851, EN 62196.
